Adjusting Fund Report Settings

Intro

The “Fund Report Settings” page allows you to manage account periods associated with the complexes in your database (i.e., view or adjust their open/closed status and specify the day after which they should auto-close), and also specify the various libraries that each fund in a given complex will utilize for captioning, footnotes, currencies, etc.

A listing of the account periods associated with a given complex, together with their corresponding open/close statuses, can also be exported to various file formats from this page.

Tasks

• Verifying/Assigning account periods for a complex

  1. Expand the ArcFiling “Settings” menu.

     1. Click the “Home” button at the top of the application window to return to the landing page.

     2. Select “ArcFiling” from the components list.



     3. Click the “Administration” tab at lower-left of the screen.



     4. Click the “Settings” menu to view available items.

  2. Expand the ArcReporting “Settings” menu.

     1. Click the “Home” button at the top of the application window to return to the landing page.

     2. Select “ArcReporting” from the components list.



     3. Click the “Administration” tab at lower-left of the screen.



     4. Click the “Settings” menu to view available items.

  3. Click the “Fund Report Settings” item.

     The “Fund Report Settings” page displays.



  4. Select the desired complex from the listing pane at left of the page.

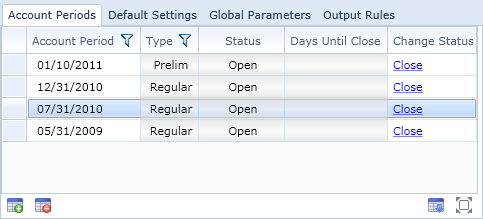

  5. Verify that the appropriate account period(s) exist in association with the complex and display a “Status” of “Open” in the grid of the “Account Periods” tab at lower-right of the page.



     1. If the account period you’re looking for exists, but displays a “Status” of “Closed” in the grid, you can re-open the period by clicking the link in the “Change Status” column.

        The “Status” for the period will display as “Re-Opened”.

     2. Click the “Add” button at lower-left of the “Detail” pane to add the appropriate account period, if it does not yet exist in association with the selected complex.

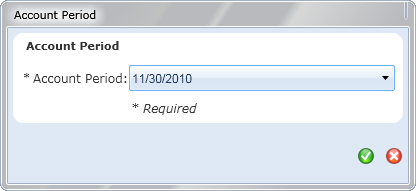

        The “Account Period” dialogue displays.



        1. Click the “Account Period” drop-down list to specify the desired account period.

        2. Click the “Accept” button at lower-right of the dialogue.

           The specified period is added to the “Account Periods” grid in association with the complex, and displays a “Status” of “Open”.

  6. Click the “Save” button at lower-right of the page if any updates were made.

  Exporting a listing of N-MFPArcReporting fund report settings account periods

  A listing of records, with certain associated information, can be exported from the application database to any of several different file formats (DOC, HTM, XML, etc.). Follow the steps below to perform a data export.

  1. Click the “Export data” button at lower-right of the pane where existing items are listed to export data from the grid.

     The “Export Format” dialogue displays.

     1. Select the option button next to the file format to which you’d like the data saved.

        •  .XML

          Places data in XML format, which can be opened in a web browser or in Microsoft Excel.

        •  .DOC

          Places data in a table within a Word document.

        •  .CSV

          Places data in a comma-delimited format, which is typically opened in Microsoft Excel.

        •  .HTM

          Places data in an HTML table within a web page, which can be opened in a web browser or in Microsoft Word or Excel.

        •  .TXT

          Places data in a tab-delimited text file, which can be opened in a text editor (e.g., Notepad) or in Microsoft Excel.

     2. Click the “Accept” button at lower-right of the dialogue.

        The “Save As” dialogue displays.

        1. Specify a local or network directory in which to store the file, and provide a “File name”.
        2. Click the “Save” button.
• Assigning primary portfolio statements, XML disclosure profiles and libraries for funds in a complex

  1. Expand the ArcFiling “Settings” menu.

     1. Click the “Home” button at the top of the application window to return to the landing page.

     2. Select “ArcFiling” from the components list.



     3. Click the “Administration” tab at lower-left of the screen.



     4. Click the “Settings” menu to view available items.

  2. Expand the ArcReporting “Settings” menu.

     1. Click the “Home” button at the top of the application window to return to the landing page.

     2. Select “ArcReporting” from the components list.



     3. Click the “Administration” tab at lower-left of the screen.



     4. Click the “Settings” menu to view available items.

  3. Click the “Fund Report Settings” item.

     The “Fund Report Settings” page displays.



  4. Select the complex to which the fund belongs from the listing pane at left of the page.

  5. Specify settings for one or more funds in the selected complex.

     1. Click the “Default Settings” tab if you wish to specify settings for a specific fund, all funds or a select set of funds.



        1. Specify the appropriate “Primary Portfolio Statement”, “Security Library”, “Abbreviation Library”, “Portfolio Footnote Library”, “Currency Caption Library”, “Issuer Library”, “Fund-level Rounding” and “Holdings Load Profile” for funds in the complex using their respective drop-down lists on the tab.

           If the “Portfolio Footnote Library” selection is changed at any time, any assignments of footnotes from the previously-selected library to securities will remain intact, however they will be hidden from view on the “Fund Holdings” page.

        2. Designate the appropriate category library for funds in the complex for each of the category types using the drop-down lists in the “Category Library” sub-tab at the bottom of the tab.

        3. Click the “Push settings to funds in this complex” link to apply the specified settings to one or more funds.

           The “Push Complex Settings to Fund(s)” dialogue displays.



           1. Select the check box(es) representing the fund(s) to which the settings will be applied.

              You can use the “Select all” or “Clear all” links to quickly select/clear the check boxes.

           2. Click the “Synchronize” button at lower-right of the dialogue.

        • The settings specified via each of the drop-down lists represent the default settings for all future fund additions to the complex, whether manually or by means of a data import.
        • You may manually change the settings for any given fund in the complex at any time (i.e., after the addition of a new fund, following a “push settings” operation, etc.).

     2. Select a particular fund in the complex from the listing pane at left of the page if you wish to specify settings for only that fund.



        1. Specify the appropriate “Primary Portfolio Statement”, “Security Library”, “Abbreviation Library”, “Portfolio Footnote Library”, “Currency Caption Library”, “XML Disclosure Profile”, “Issuer Library”, “Fund-level Rounding” and “Holdings Load Profile” for the fund using their respective drop-down lists in the “Fund Settings” pane at right of the page.

           If the “Portfolio Footnote Library” selection is changed at any time, any assignments of footnotes from the previously-selected library to securities will remain intact, however they will be hidden from view on both the “Holdings” and “Footnotes” tabs of the “Fund Holdings” page.

        2. If needed, select the “Exchange Rates Override” check box for a given fund, and then specify the “Exchange Rate Source”, “Exchange Rate Time” and “Exchange Rate Time Zone” that should be used to source horizontal calculation values for that fund via the associated drop-down lists.
        3. Designate the appropriate “Category Library” for the fund for each of the category types using the drop-down lists in the “Category Library” tab at lower-right of the page.

  6. Click the “Save” button at lower-right of the page.

  Exporting a listing of N-MFPArcReporting fund report settings category libraries

  A listing of records, with certain associated information, can be exported from the application database to any of several different file formats (DOC, HTM, XML, etc.). Follow the steps below to perform a data export.

  1. Click the “Export data” button at lower-right of the pane where existing items are listed to export data from the grid.

     The “Export Format” dialogue displays.

     1. Select the option button next to the file format to which you’d like the data saved.

        •  .XML

          Places data in XML format, which can be opened in a web browser or in Microsoft Excel.

        •  .DOC

          Places data in a table within a Word document.

        •  .CSV

          Places data in a comma-delimited format, which is typically opened in Microsoft Excel.

        •  .HTM

          Places data in an HTML table within a web page, which can be opened in a web browser or in Microsoft Word or Excel.

        •  .TXT

          Places data in a tab-delimited text file, which can be opened in a text editor (e.g., Notepad) or in Microsoft Excel.

     2. Click the “Accept” button at lower-right of the dialogue.

        The “Save As” dialogue displays.

        1. Specify a local or network directory in which to store the file, and provide a “File name”.
        2. Click the “Save” button.
• Managing output rules for a complex

  1. Expand the ArcFiling “Settings” menu.

     1. Click the “Home” button at the top of the application window to return to the landing page.

     2. Select “ArcFiling” from the components list.



     3. Click the “Administration” tab at lower-left of the screen.



     4. Click the “Settings” menu to view available items.

  2. Expand the ArcReporting “Settings” menu.

     1. Click the “Home” button at the top of the application window to return to the landing page.

     2. Select “ArcReporting” from the components list.



     3. Click the “Administration” tab at lower-left of the screen.



     4. Click the “Settings” menu to view available items.

  3. Click the “Fund Report Settings” item.

     The “Fund Report Settings” page displays.



  4. Select the desired complex from the listing pane at left of the page.

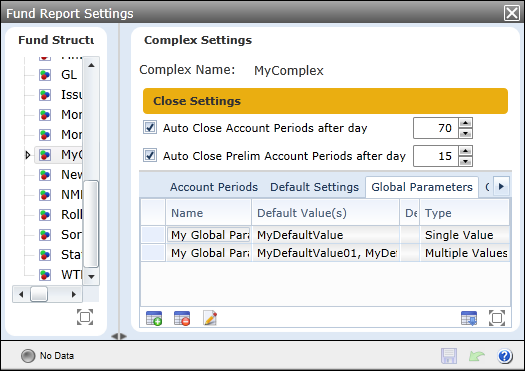

  5. Click the “Global Parameters” tab to specify any global parameters for the complex.

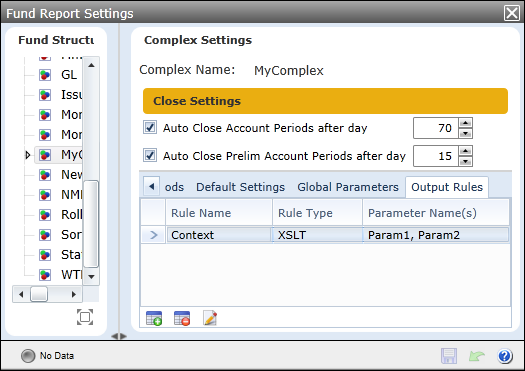

  6. Click the “Output Rules” tab to specify any rules for the complex.



  7. Click the “Save” button at lower-right of the page if any updates were made.

  Exporting a listing of N-MFPArcReporting fund report settings global parameters

  A listing of records, with certain associated information, can be exported from the application database to any of several different file formats (DOC, HTM, XML, etc.). Follow the steps below to perform a data export.

  1. Click the “Export data” button at lower-right of the pane where existing items are listed to export data from the grid.

     The “Export Format” dialogue displays.

     1. Select the option button next to the file format to which you’d like the data saved.

        •  .XML

          Places data in XML format, which can be opened in a web browser or in Microsoft Excel.

        •  .DOC

          Places data in a table within a Word document.

        •  .CSV

          Places data in a comma-delimited format, which is typically opened in Microsoft Excel.

        •  .HTM

          Places data in an HTML table within a web page, which can be opened in a web browser or in Microsoft Word or Excel.

        •  .TXT

          Places data in a tab-delimited text file, which can be opened in a text editor (e.g., Notepad) or in Microsoft Excel.

     2. Click the “Accept” button at lower-right of the dialogue.

        The “Save As” dialogue displays.

        1. Specify a local or network directory in which to store the file, and provide a “File name”.
        2. Click the “Save” button.
